Achieves the highest vibration isolation performance in the industry
• Easy to mount
• Hybrid vibration isolator with combined rubber and spring
• Slim shape and ultra-high performance
Application
As vibration-isolation supporting material for pumps, air conditioners, blowers, electric motors, compressors, transverse piping, fan-coil units, package air conditioners, etc.
Size
W66×D54×H30 W82×D82×H35

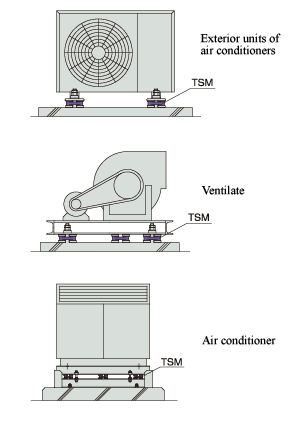

Example of installation
Specifications
| Model |
Loading Range N(kgf) |
| TSH-005H |
～59(～6) |
| TSH-010H |
59～98(6～10) |
| TSH-015H |
98～147(10～15) |
| TSH-020H |
147～147(10～15) |
| TSH-030H |
216～304(22～31) |
| TSH-045H |
304～441(31～45) |
| TSH-065H |
441～637(45～65) |
| TSH-090H |
637～912(65～93) |
| TSH-130H |
912～1314(93～134) |
| TSH-200H |
1314～1961(134～200) |
| TSH-250H |
1961～2452(200～250) |
| TSH-300H |
2452～2942(250～300) |
| TSH-450 |
2942～4413(300～450) |
| TSH-600 |
3923～5884(400～600) |
| TSH-825 |
5394～8090(550～825) |
| TSH-1100 |
7355～10787(750～1100) |
